Product Details

The 004-0-0053 Sensesair S8 Low Power CO2 Sensor module is designed to be used in a wide range of applications where both energy consumption and accuracy are critical factors.

Features

  • Miniature size
  • Compliant with ANSI/ASHRAE Standard 62.1-2022
  • Compliant with RESET grad B
  • Compliant with WELL Building Standard® (WELL v2™)
  • Individually calibrated
  • Maintenance-free
  • Long term stability
  • Low power consumption

Models

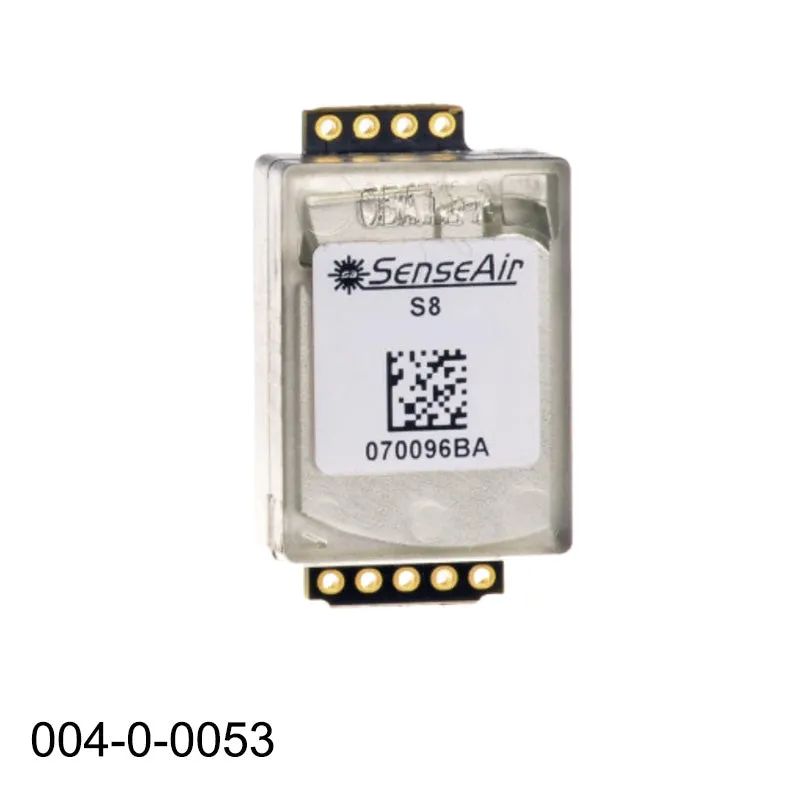

004-0-0053 Senseair S8 Low Power CO2 Sensor - designed for high volume production with focus on energy consumption and accuracy.

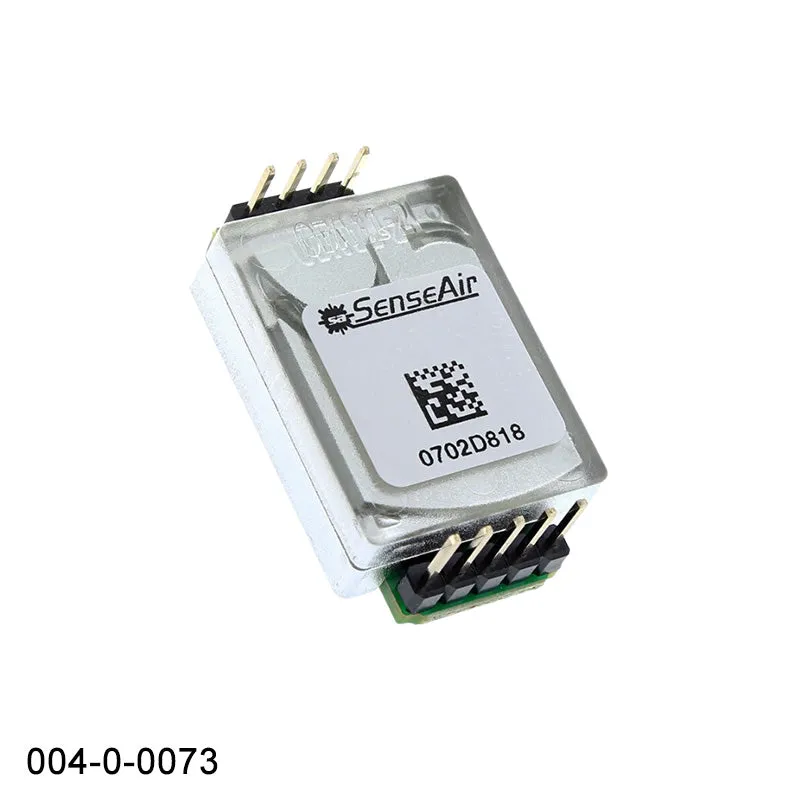

004-0-0073 Senseair S8 Low Power CO2 Sensor w/ PINS - designed for high volume production with focus on energy consumption and accuracy.

Specifications

  • CO2 Measurement: non-dispersive infrared (NDIR)
  • Measurement Method: diffusion
  • Measurement Range: 400 to 2,000 ppm, 0 to 10,000ppm
  • CO2 Accuracy: ± 40 ppm ± 3% of reading
  • Communication Options: UART Modbus
  • Alarm Output (open collector): Open > 1,000ppm, Closed <800 ppm
  • PWM Output: 0 to 100 % duty cycle for 0 to 2,000ppm
  • Operating Temperature: 0 to 50°C
  • Dimensions: 8.5 x 33.5 x 20 mm
  • Sensor Life Expectancy: > 15 years
  • Maintenance Interval: no maintenance required for normal applications with ABC on
  • Self-Diagnostics: complete function check on startup
  • Electrical / Mechanical

    • Power Supply: 4.5 V to 5.25  V DC
    • Max Current: 300 mA < 18mA average.
    • Power Consumption: 300mA peak, 30mA average

    Warranty

    • 90 days - See CO2Meter Terms and Conditions

    004-0-0053 Senseair S8 Low Power CO2 Sensor
    • 00400053SenseairLowPowerCO2Sensor
    • 00400073SenseairLowPowerCO2SensorwPINS

    $ 0.00

    $ 46.00
