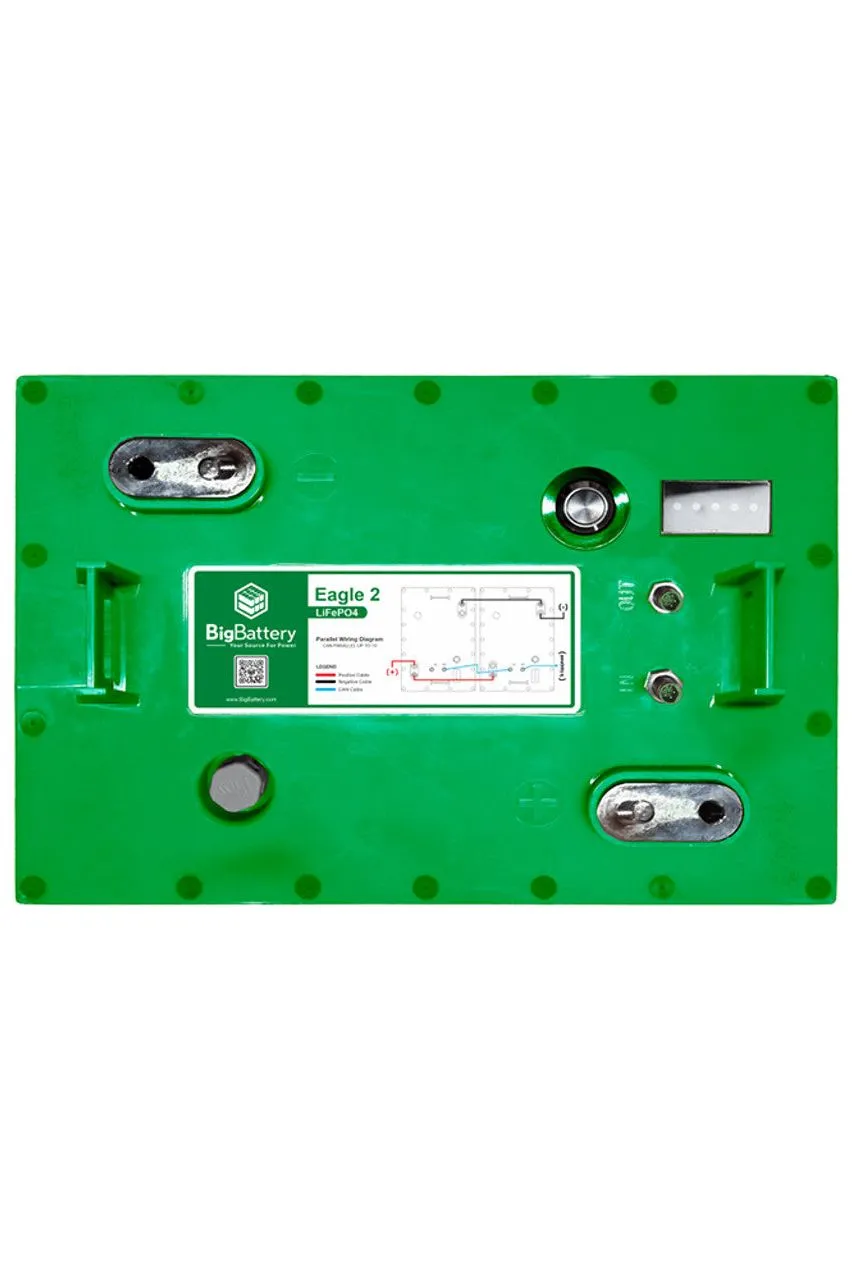

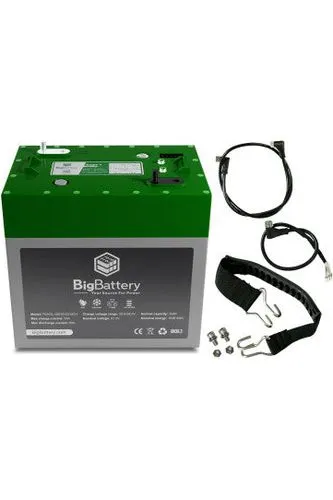

The BigBattery 48V 1.63 kWh EAGLE 2 battery system offers the same reliability and performance as its 24V counterpart, tailored for higher voltage applications. It serves as an ideal solution for golf carts, RVs, industrial equipment, off-grid power systems, emergency power supplies, and more.

Reliable Safety and Performance: Utilizing lithium iron phosphate (LiFePO4 or LFP) cells renowned for their safety, the EAGLE 2 ensures optimal performance and safety with its intelligent Battery Management System (BMS). Waterproof and equipped with built-in fire-extinguishing modules and heating elements, it offers reliable operation even in extreme conditions.

Seamless Integration: With a standard M8 bolt connection, the EAGLE 2 easily integrates into existing systems, providing ease of installation and connectivity.

Longevity and Durability: Engineered for longevity, the EAGLE 2 boasts a lifespan of over 10 years and can withstand more than 4000 - 6000 cycles at 80% Depth of Discharge (DOD) at a rate of 0.5C.

Monitoring and Connectivity: Monitor remaining capacity with the LED meter for easy tracking of battery status.

Key Features:

• GC2 form factor
• Self-heating function
• IP67 protection rating
• Smart BMS with auto-cell balancing

Battery Specifications:

• SKU: FEAGL-48016-G2-XXX
• System Voltage: 48V
• Nominal Voltage: 51.2V
• Chemistry: LiFePO4
• kWh Capacity: 1.63 kWh
• Ah Capacity: 32
• Charging Voltage Range: 55.6V - 58V
• Max Continuous Discharge Current: 60A
• Max Continuous Power: 3072W
• Max Discharge Peak Current: 200A (Max 3 seconds)
• Max Charge Current: 30A
• Charge Temperature Range: -4°F - 131°F (-20°C - 55°C)
• Discharge Temperature Range: -4°F - 140°F (-20°C - 60°C)
• Optimal Discharge Temperature Range: 59°F - 95°F (15°C - 35°C)
• Storage Temperature Range (SoC >50%): 23°F - 95°F (-5°C - 35°C) (Max 3 months)
• Dimensions (DxWxH): 7.1 x 10.2 x 10.8 in (180 x 260 x 274 mm)
• Weight: 38 lbs (17.2 kg)
• Max Connections: Up to (10) Parallel
• Protection Rating: IP67
• Communications: No CANBus
• Heating Function: Yes

Designed For:

• Golf carts
• Utility carts
• 48V UTVs & LSVs
• Lead acid replacement
• Intense heat & cold
• Class A, B, & C RVs
• Camper vans
• Food trucks
• Commercial vehicles
• Emergency backup
