Product Details
＋

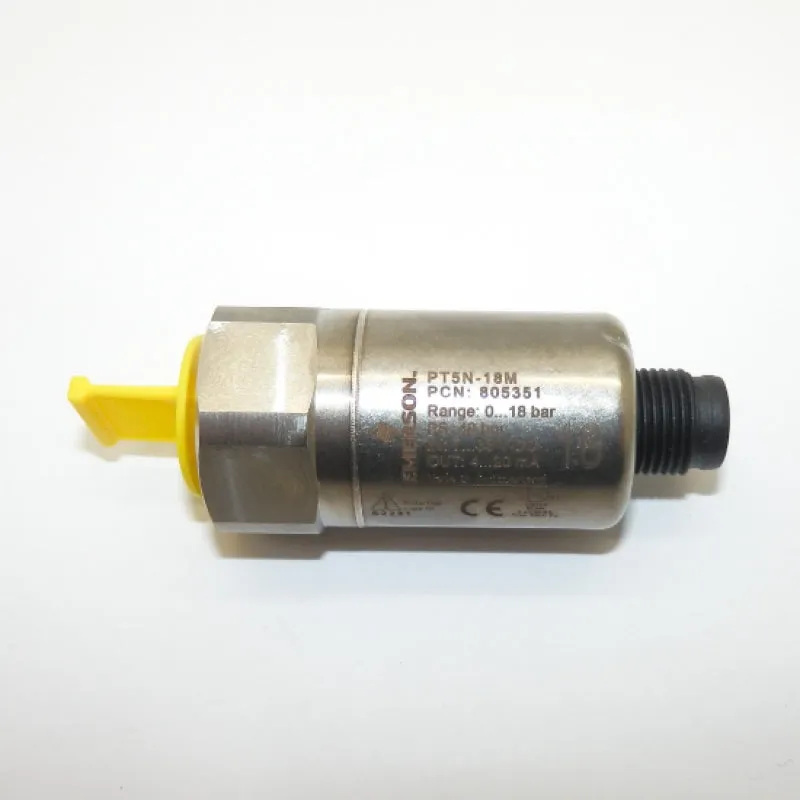

PT5N pressure transmitters convert a pressure into a linear electrical 4 .. 20 mA output signal suitable for controlling simple compressor and fan switching to the more sophisticated application of superheat modulation of electronic control valves. With competitive performance to price characteristics and an easy to install pre-fabricated M12 cable assembly, PT5N transmitters are the designers choice for all heat pump, refrigeration and air conditioning applications.
Specifications:
- Function: Pressure transmitter
- Compatible with: EXD-SH1/2, EXD-HP1/2
- Measurement Range: 0 to 18 bar
- Maximum Allowable Pressure: 48 bar
- Pressure Connection: 7/16" female-Schr.opener
