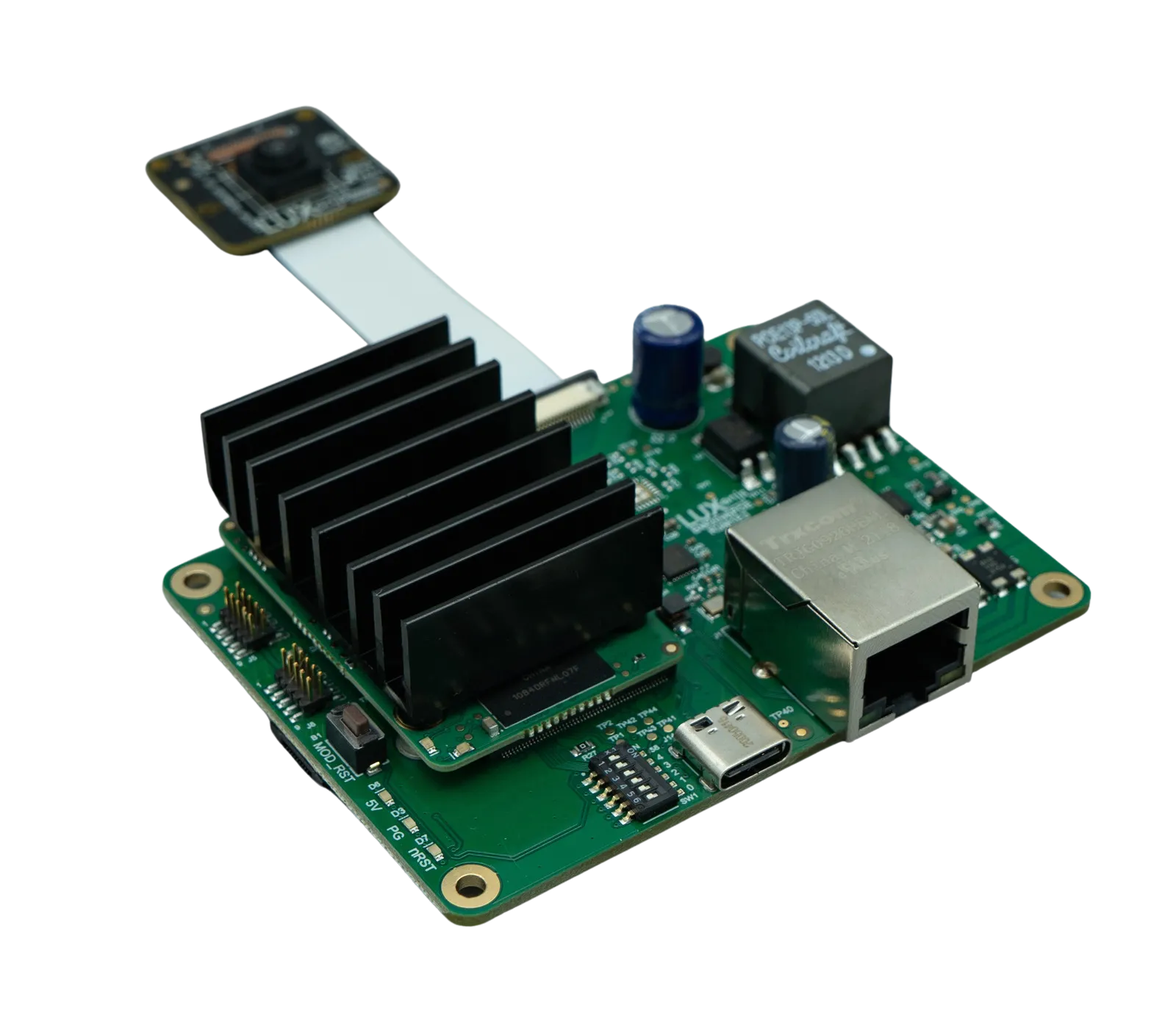

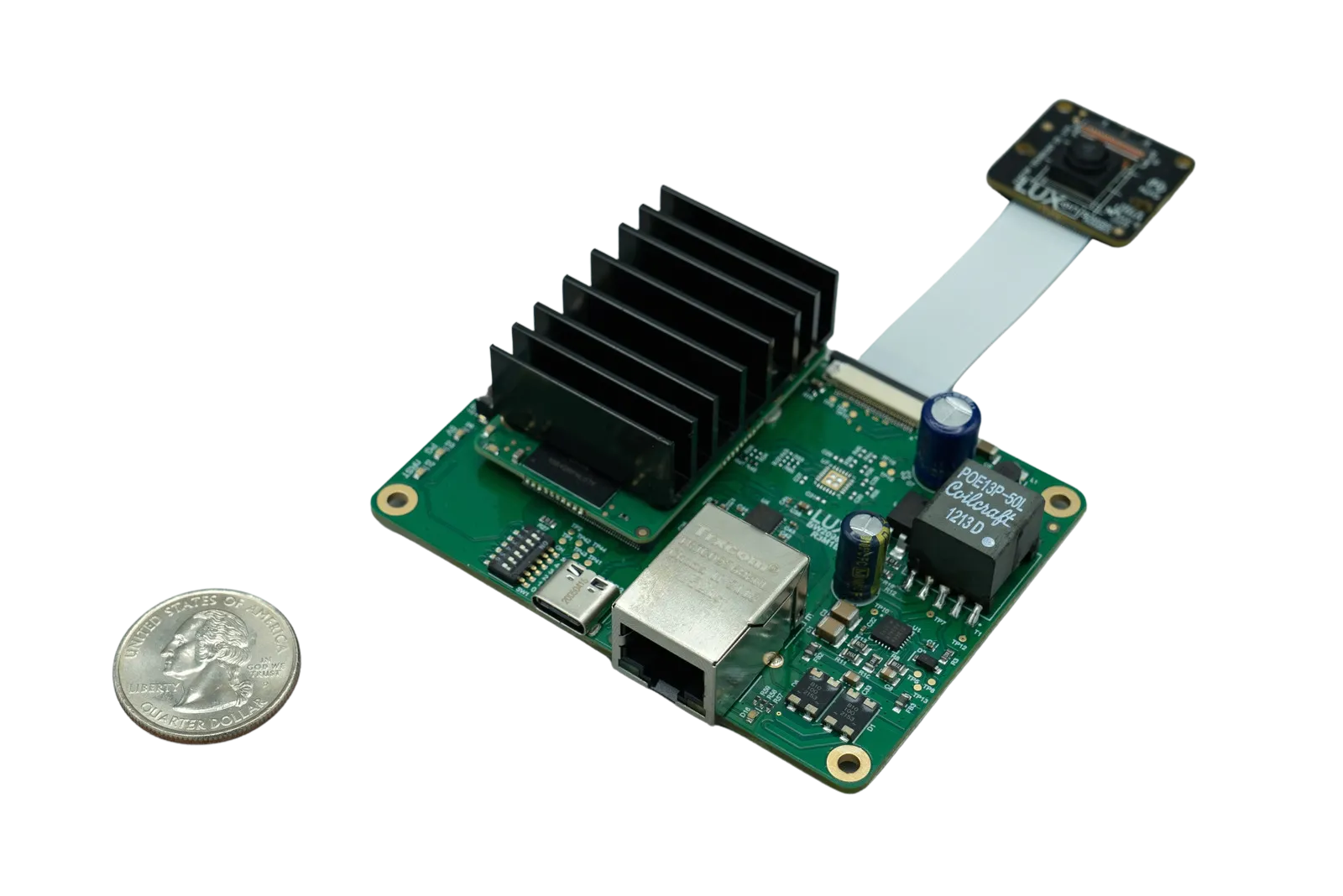

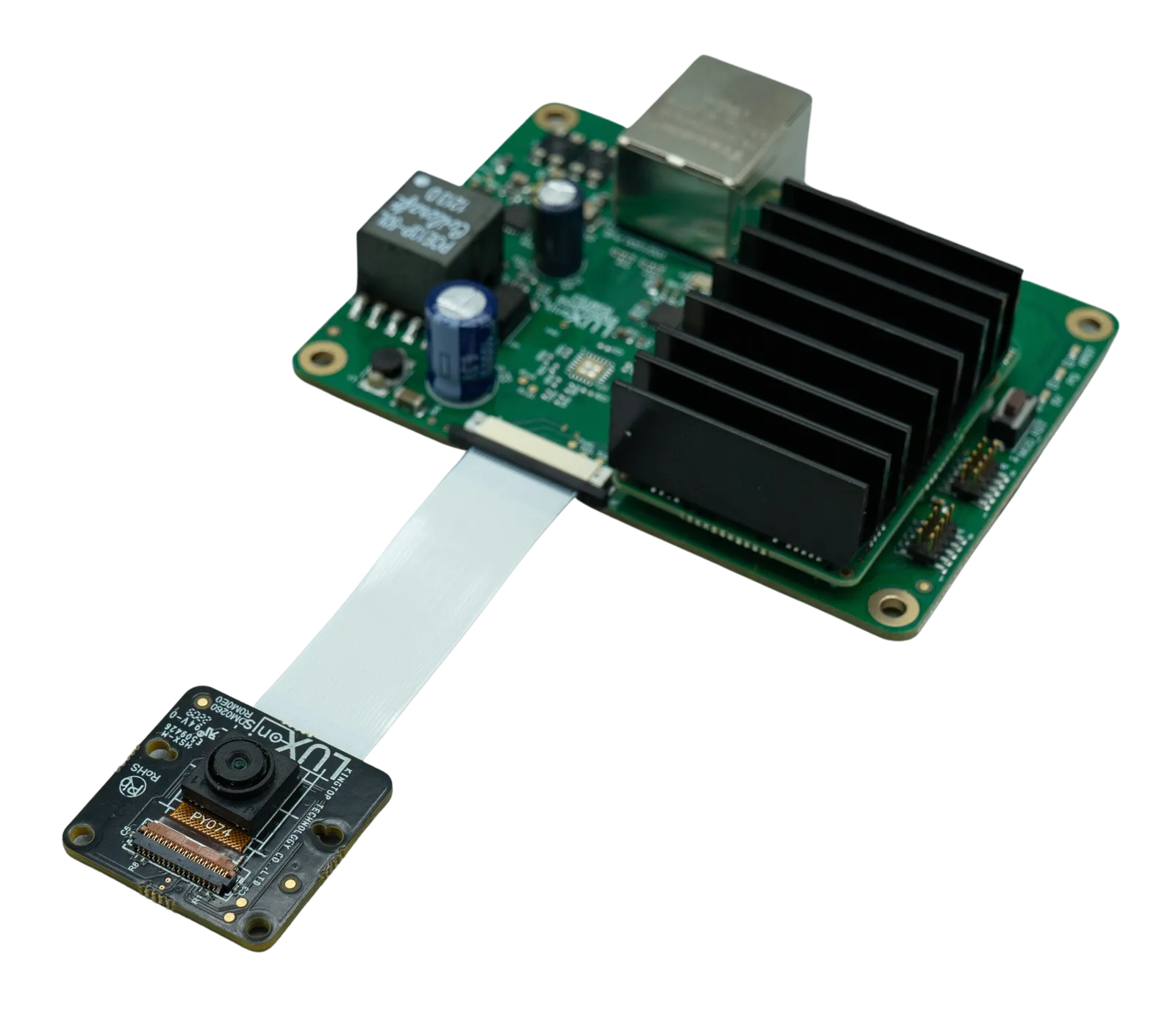

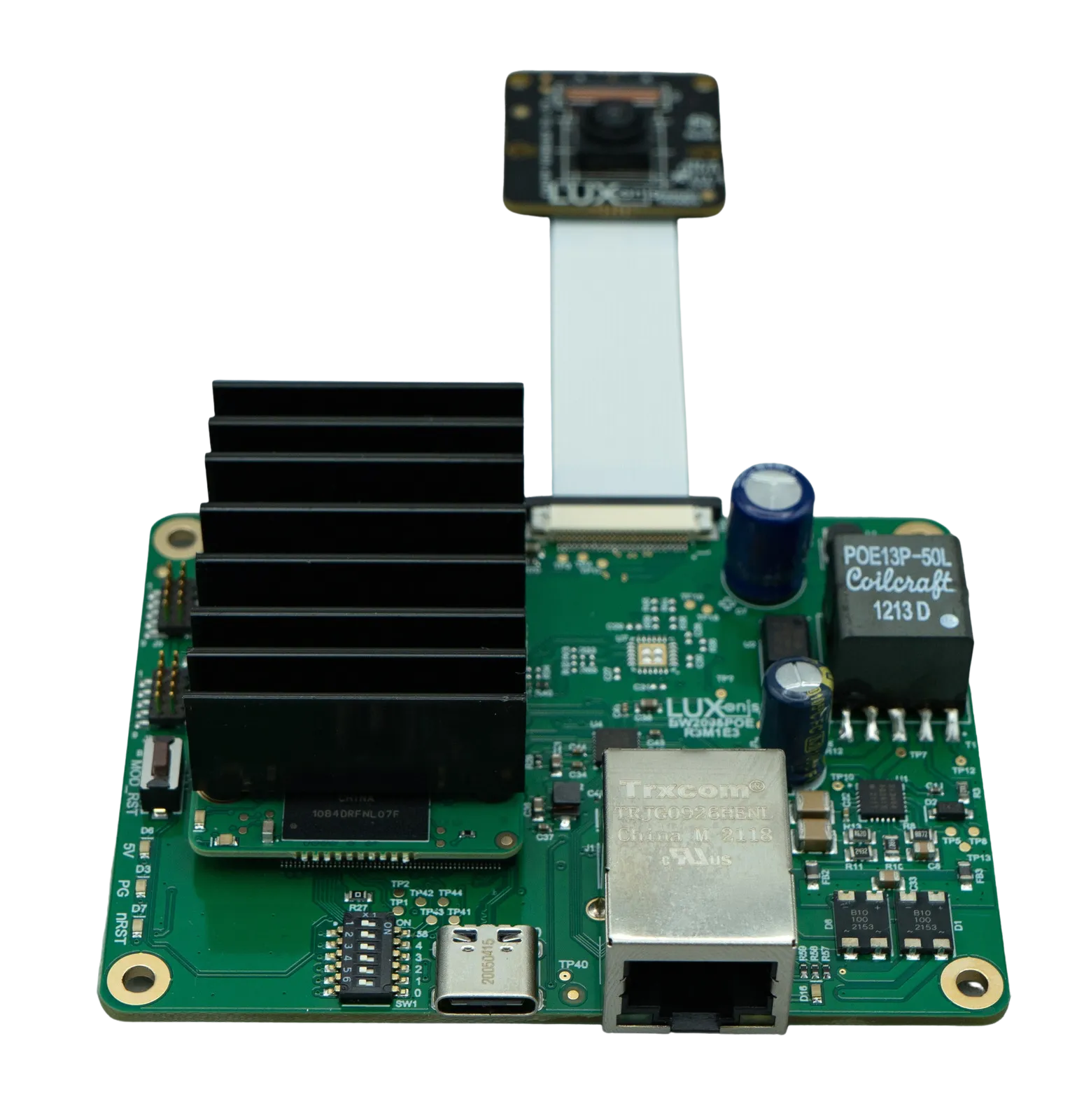

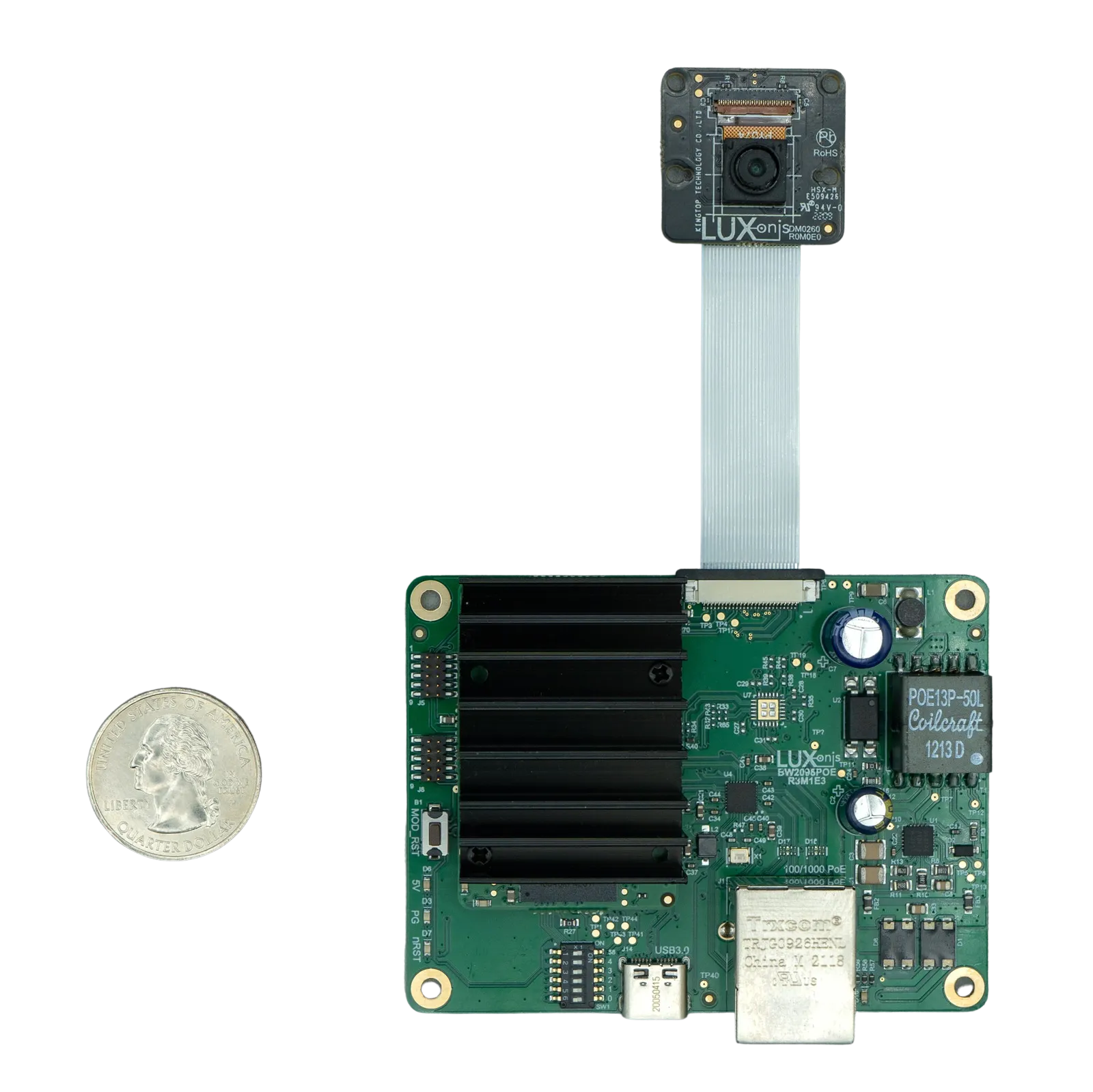

OAK-FFC 1P PoE is a flexible and powerful prototyping platform that allows you to connect any that best fits your project requirement in terms of resolution, FPS, FOV, shutter type, and depth of focus. It also features on-device and capabilities.

• Allowing to connect any
• Micro SD card connector for DepthAI SoM 3.3V SDIO
• 4 TOPS of processing power (1.4 TOPS for AI)
• Power-over-Ethernet (PoE)

Description

This platform has on board offering 4 TOPS of processing power (1.4 TOPS for AI - ), capable of running any AI model (models need to ) on the device. It supports encoding in H.264, H.265, and MJPEG at 4K/30FPS, 1080P/60FPS. Computer vision features include warp, resize, crop via , , and , with the ability to .

We suggest following for smooth experience.

Do you need more cameras? The offers the same functionality as the OAK-FFC 1P PoE, but also 3 additional FFC ports and PoE passthrough feature (for daisy chaining).

Key Features

• 4 TOPS of processing power (1.4 TOPS for AI - )
• Run any AI model, even custom architectured/built ones (models need to )
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via node, , . You can also
• Object tracking: 2D tracking with node

• Power consumption: up to 5.5W
• Gigabit ethernet for power (PoE) and data
• Dimensions: 80x60mm
• Weight: 78g

Compatible Camera Modules

Note: Please take note that the manual calibration is needed when the camera modules are connected. Please follow the .

This board is also compatible with RPi camera interface. For that you will need a , which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.

Technical Details

• Interface for
• USB 3.1 Gen1 Type-C
• Power-over-Ethernet (PoE)
• 1000BASE-T ethernet
• Header access for OAK-SoM Pro 1.8V SPI
• Header access for OAK-SoM Pro 1.8V Aux Signals (I2C, UART, GPIO)
• Micro SD connector for OAK SoM 3.3V SDIO
• On-board PCIe ref clk for OAK-SoM Pro and PCIe/Ethernet bridge
• User-selectable OAK-SoM Pro boot configuration switches
• Design files produced with Altium Designer 20

The base board offers full 802.3af, Class 3 PoE compliance with 1000BASE-T speeds (1Gbps). PoE injector/switch is required to power the device. If need an injector, you can buy it .

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption camera streaming: 2.5W - 3W
• PoE circuitry: 0.5W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5.5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our

Package Includes

Package includes:

• OAK-FFC 1P PoE assembly
• Ethernet cable, 2m
• Flexible flat cable, 15cm

Note: PoE injector / switch is required to power the device and it is not included in the packaging. If you need an injector, you can buy it .

Note: Camera modules are not included in the packaging. List of available cameras is .
