Name: OAK-FFC 4P
SKU: 491636

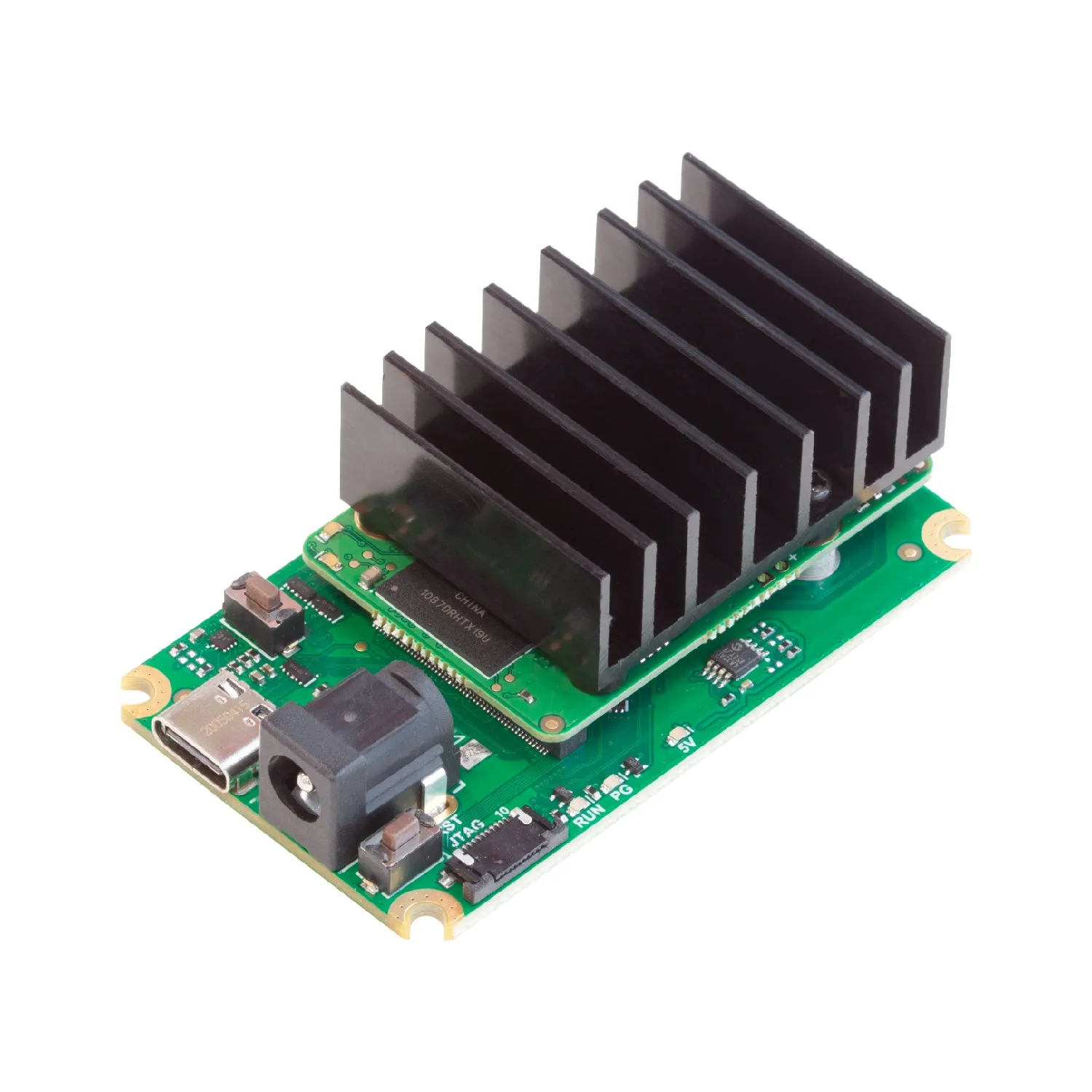

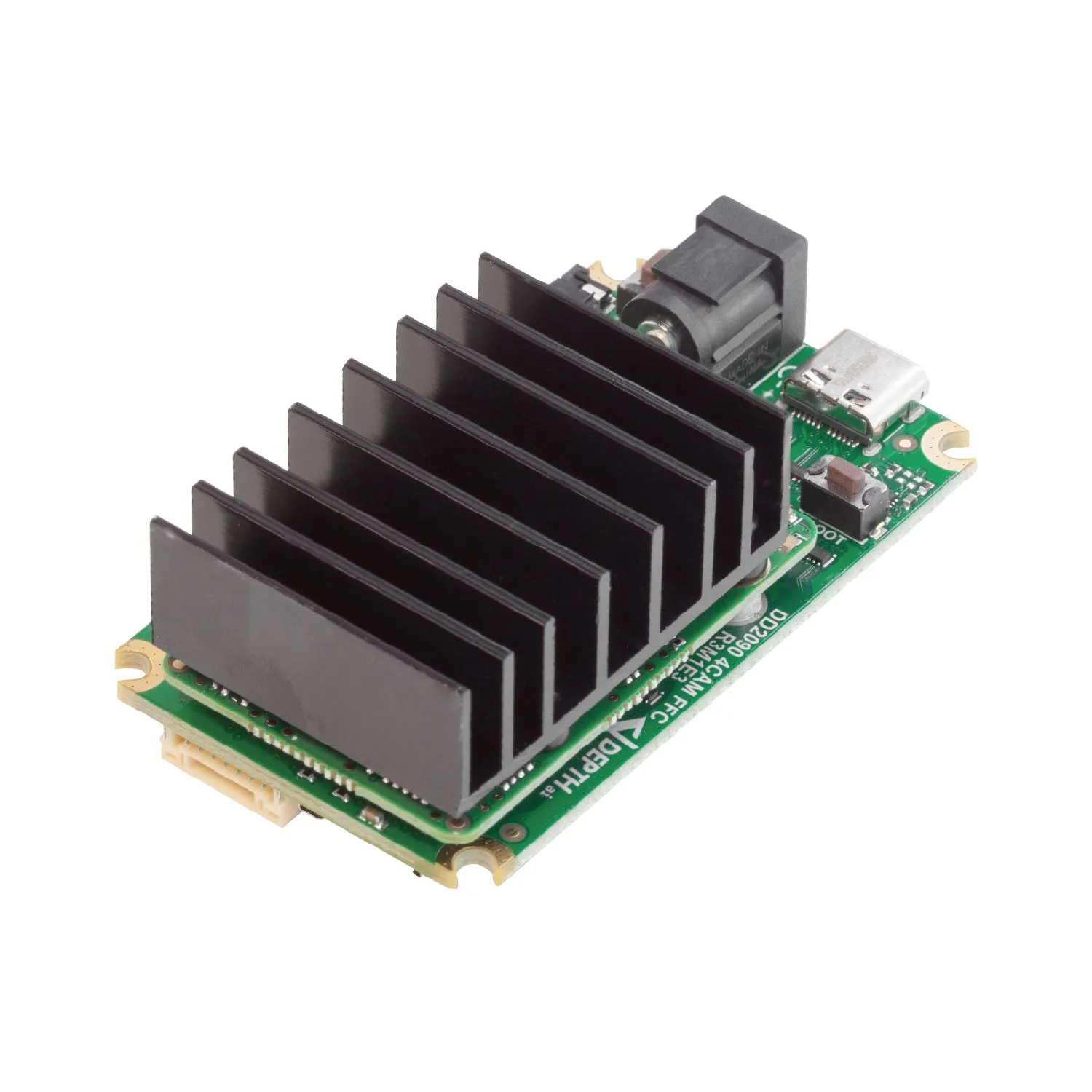

OAK-FFC 4P is a flexible and powerful prototyping platform that allows you to connect up to 4 that best fit your project requirement in terms of resolution, FPS, FOV, shutter type, and depth of focus. It also features on-device and capabilities.

Up to 4 cameras: two 2-lane MIPI and two 4-lane MIPI
BNO086 IMU single chip 9 axis sensor with embedded sensor fusion
5V power input via barrel jack
USB2 / USB3 for power delivery and communication

Description

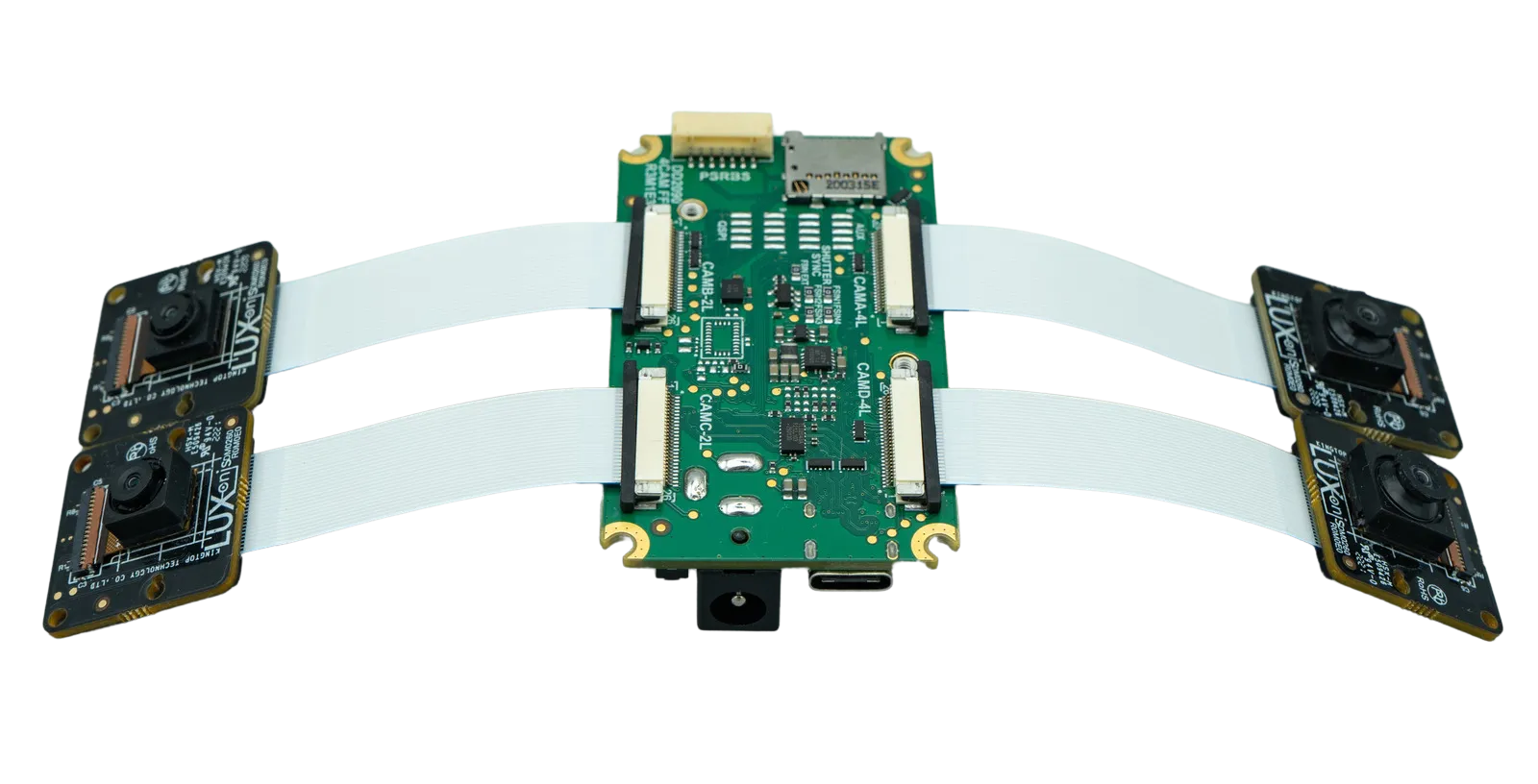

OAK-FFC 4P is a versatile prototyping platform that enables the connection of any to suit your project's specific requirements for resolution, FPS, FOV, shutter type, and depth of focus. This platform has OAK-SoM on board so it also offers on-device and capabilities. You can connect up to 4 camera modules in various positions, with different stereo baseline distances and angles. The device uses USB-C for both power and USB3 connectivity.

We suggest following for smooth experience.

Key Features

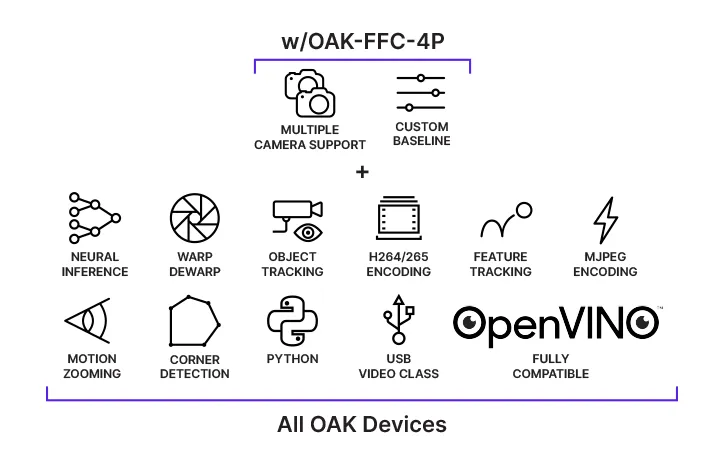

RVC2 architecture on-board features:

4 TOPS of processing power (1.4 TOPS for AI - )
Run any AI model, even custom architected/built ones (models need to )
Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
Computer vision: warp (undistortion), resize, crop via node, , . You can also
Stereo depth perception with filtering, , , and high
Object tracking: 2D and 3D tracking with node

Specifications

Dimensions: 62x38x22 mm
Weight: 41g
Power consumption: up to 5W

Compatible Camera Modules

Note: Please take note that the manual calibration is needed when the camera modules are connected. Please follow the .

MP	Color/Grayscale	Shutter Type	Focus Type	Wide FOV	DFOV / HFOV / VFOV	M12 Mount
13MP	Color	Rolling	FF: 50 cm - ∞	Yes	117° / 105° / 88°	-
12MP	Color	Rolling	AF: 10 cm - ∞	-	81° / 69° / 55°	-
12MP	Color	Rolling	FF: 50 cm - ∞	-	82° / 69° / 55°	-
12MP	Color	Rolling	FF: 50 cm - ∞	Yes	120° / 108° / 93°	-
1MP	Grayscale	Global	FF:19.6 cm - ∞	-	89° / 80° / 55°	-
1MP	Grayscale	Global	FF: 20 cm - ∞	-	HFOV: 75˚	Yes
1MP	Grayscale	Global	FF: 19.6cm - ∞	Yes	150° / 127° / 79.5°	-
1MP	Color	Global	FF: 20 - ∞	-	HFOV: 75°	Yes
1MP	Color	Global	FF: 19.6 cm - ∞	Yes	150° / 127° / 79.5°	-
12MP	Color	Rolling	AF:10 cm - ∞	-	HFOV: 75°	Yes
2.3MP	Color	Global	FF: 45cm - ∞	-	100° / 82° / 56°	Yes
32MP	Color	Rolling	AF: 20cm - ∞	-	71° / 45° / 55°	-

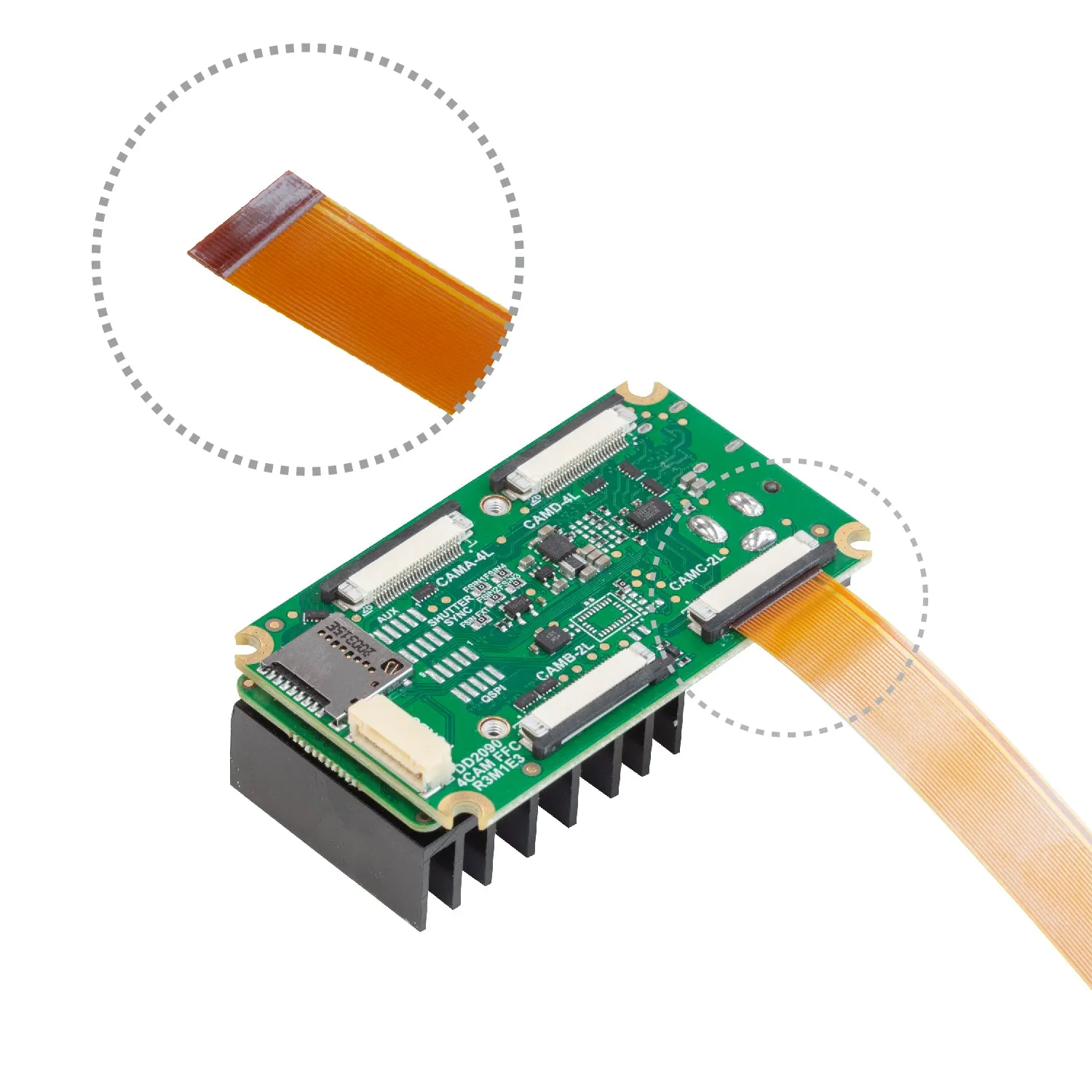

This board is also compatible with RPi camera interface. For that you will need a , which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.

Technical Specification

General information

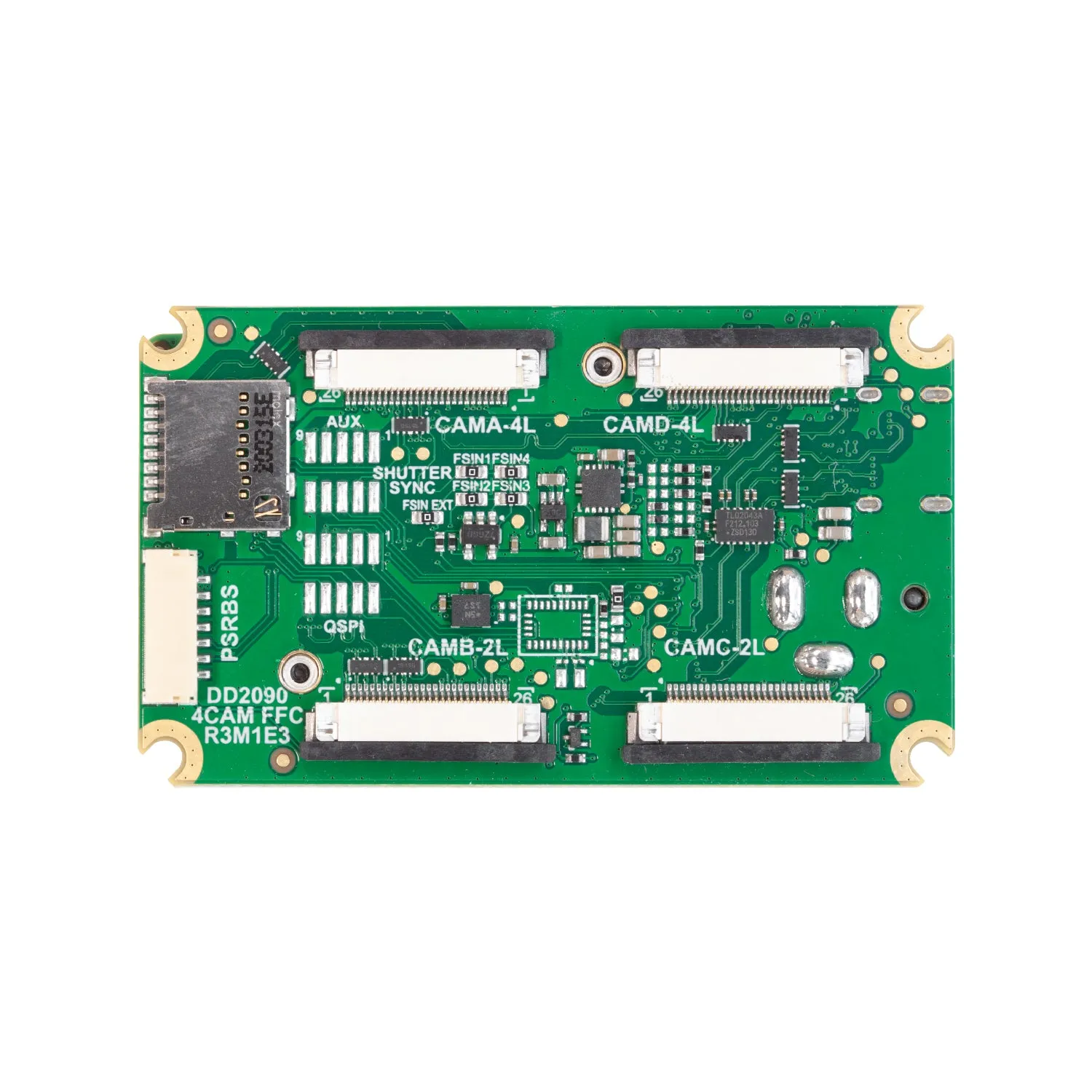

2x 2-Lane MIPI interface
2x 4-Lane MIPI interface

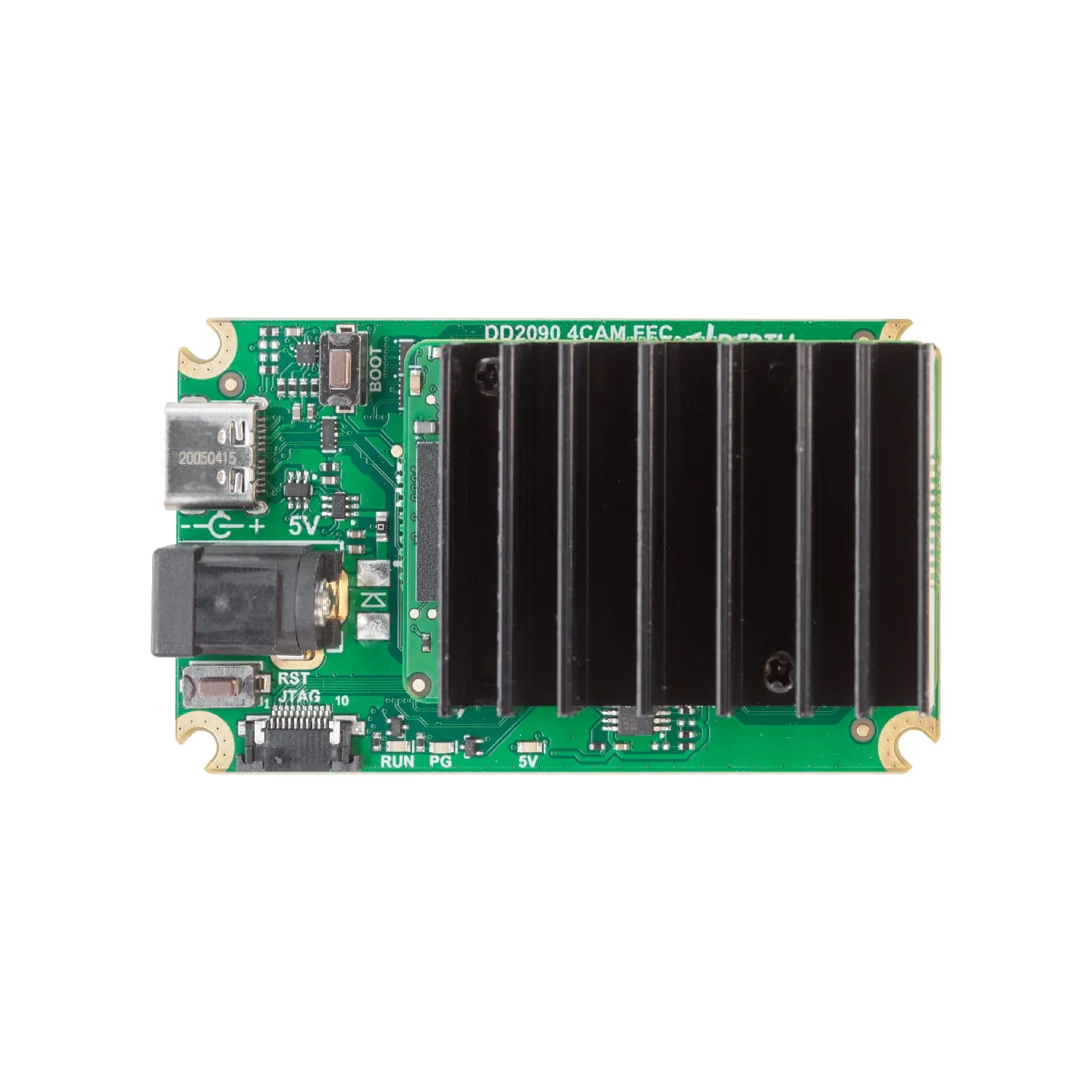

5V power input via barrel jack
USB 3.1 Gen 1 Type-C
Interface for Luxonis OAK-SoM-Pro
Pads for OAK-SoM-Pro 1.8V SPI
Pads for OAK-SoM-Pro 3.3V SDIO
Pads for OAK-SoM-Pro 1.8V Aux Signals (I2C, UART, GPIO)
5V Fan OR USB Type-C
Design files produced with Altium Designer 20

Integrated IMU

This OAK camera has an integrated BNO085, a 9-axis IMU (Inertial Measurement Unit). See for the API details on how to use it.

Power consumption

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

Base consumption camera streaming: 2.5W - 3W
AI subsystem consumption: Up to 1W
Stereo depth pipeline subsystem: Up to 0.5W
Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Temperature

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our
