Features

• Software: Includes interactive soft front panel, API support for LabVIEW and text-based languages, shipping examples, and detailed help files
• Electromechanical and FET relay options
• Bandwidth up to 40 GHz
• Unterminated and terminated options
• Onboard relay count tracking
• Ability to store RF path calibration information in NI Switch Executive

Specifications

• Noumber of banks: 4
• Bandwidth: 2.7 GHz
• Scan rate: 45 cycles/s
• Voltage AC: 30 Volts
• Max carry current: 0.5A

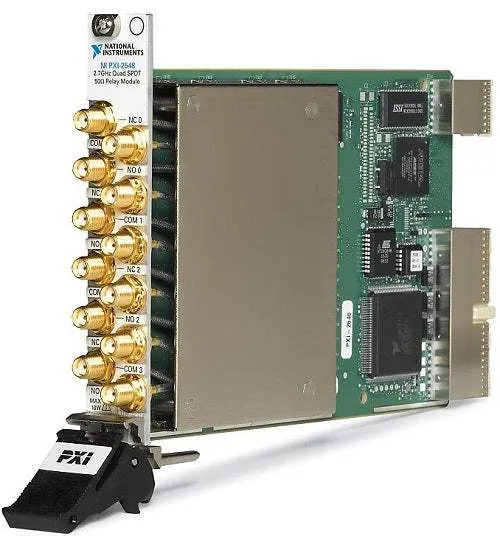

The PXI-2548 is a pxi from National Instruments. PXI RF Relay Modules offer single-pole double-throw (SPDT) and terminated switches. SPDT models include excellent insertion loss, voltage standing-wave ratio (VSWR), and isolation parameters to minimize signal degradation.
