Features

• Visible Light Facial Recognition
• Anti-spoong algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
• Multiple verication methods: Face / Palm / Card / Password
• Available card modules: 125kHz ID card (EM) / 13.56MHz IC card
• Supplement light with adjustable brightness
• 800 face templates capacity, 800 palm templates capacity

Recognition distance up to 2m and extra wide angle recognition

The recognition distance has been greatly extended to 2 meters, which
signicantly improves the maximum track rate. While most of the algorithms
only support /-15° of detectable face angle, SpeedFace Mini doubles the
detection angle in terms of head rotation and tilt to /- 30°.
Touchless palm authentication method with a novel hand tracking technique
allowing angle tolerance as wide as /-60° in the roll axis and a recognition distance of 50cm.

Specifications :

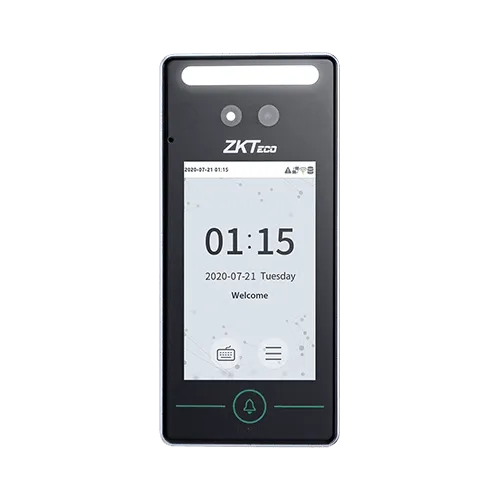

Display : 4” touch screen
Face Capacity : 800
Palm Capacity : 800
Card Capacity : 1,000
Transactions : 150,000
Operation System : Linux

Standard Functions
ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays,
Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verication Methods,
Palm Recognition, WiFi

Hardware
900MHz Dual Core CPU;
512MB RAM / 512MB Flash;
2MP Binocular Camera;
Adjustable LED Supplement Lighting

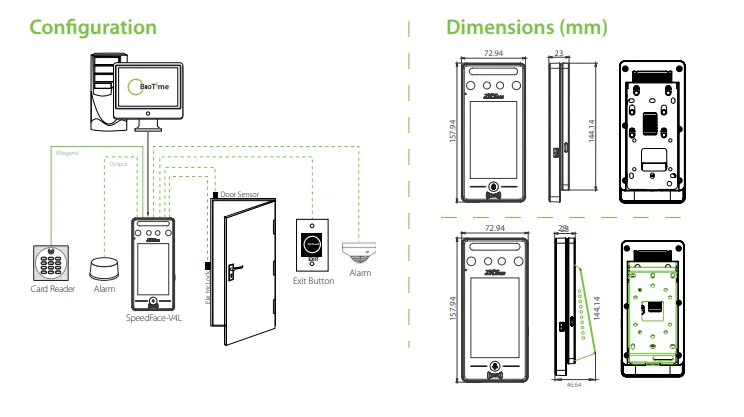

Communication TCP/IP, USB Host, WiFi, Wiegand Input/Output, RS485
Access Control Interface 3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Auxiliary Input
Optional Function : 13.56MHz IC Card, SRB Function, Cable Box
Facial Recognition Speed : ≤1s
Biometrics Algorithms : ZKFace V5.8 & ZKPalm V12.0
Power Supply : 12V 3A
Working Humidity : 10% ~ 90%
Working Temperature : 0°C ~ 45°C (32°F ~ 113°F)
Dimensions : (WxHxD) 72.94 x 157.94 x 23 (mm)
Net Weight : 260g
Gross Weight : 850g
Supported Software : ZKBioSecurity
